4 Sony CCD Day/Night Vision Color Camera H.264 Real Time Recording Network Remote Viewing DVR System Built-in 500GB HDD - R401M60W500G8753

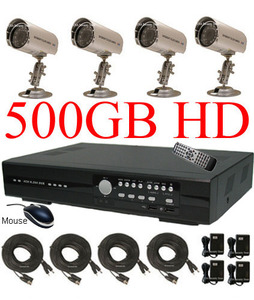

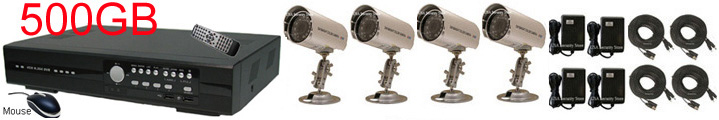

PACKAGE CONTENTS

Mode: R401M60W500G8753

4 Cameras Stand Alone DVR Network Remote Viewing
Supports Windows IE and Mac OS Remote Viewing over Internet
500GB Hard Disk Has Been Installed Inside
Real Time Display and Recording in 120 Frame Per Second
High Resolution 1600x1200 VGA Output and TV Output
USB Back Up and Network Remote Back up
4 x Sony CCD 24LEDs Day / Night Infrared Weather Proof Bullet Color Cameras
4 x 65FT Video Cables with Power Wire and Power Supply



One 4 Camera Stand Alone Network DVR w/500GB Hard Disk Driver Built in
Four Day Night Vision Sony CCD Color Camera 460TVL
Four Indoor/Outdoor Bracket
Four DC 12V 500mA Power Adapter
Four 65ft Video Cable with Power Wire
If you need longer cable, please email to us
Video Viewer and EagleEyes Application
One Year Warrant Guaranteed



Feature
H.264 Compression crystal clear images with real time performance
Support USB back up network remote recording & backup
Remote surveillance with 5 users simultaneously
Support manual / timer / motion / alarm / remote recording functions
Support 4 audio-in, 1 audio-out to record sounds
System auto recovery after power reconnected
Watermark function ensures authentication of the recorded images
Support TCP/IP, PPPoE, DHCP and DDNS network connection
Easy to install and connects to your existing TV, VCR, DVR Quad Process



Products Specification
Video System: NTSC / PAL (switchable)
Video Compression Format: H.264

Video Input: 4 Channels. Composite video signal 1 Vp-p 75O BNC
Video Out: 4 Channels. Composite video signal 1 Vp -p 75O BNC
Maximum Recording Rate: 120 Frame Per Second
Adjustable Recording Speed: 120, 60, 30 Frame

Image Quality Setting: Best, High, Normal and Basic
Hard Disk Storage: SATA type, capacity over 1000GB
Recording Mode: Manual / Timer / Motion / Alarm / Remote
Audio I/O : 4 audio input, 1 audio output (Mono)
Motion Detection Area: 16 × 12 grids per camera for all channels
Motion Detect Sensitivity: 4 adjustable Level
Pre-alarm Recording: Yes (8MB)
Backup Device: Network remote backup
Web Interface: Support licensed software AP and IE browser Mac Firefox
Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
PTZ control: Support PELCO-D protocol
VGA: High Resolution 1600x1200
Alarm I/O: 4 inputs, 1 output
Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
Key Lock: Yes
Video Loss Detection: Yes
Camera Title: Support up to 6 letters
Video Adjustable: Hue / Color / Contrast / Brightness
Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Power Source: DC 19V
Power Consumption: <42 W
Operating Temperature: 10" ~ 40" (50"~104")
Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
Weight: 2Kg



Camera Features

Weatherproof and Vandaproof, Indoor and Outdoor
24 infra-red LEDs see in the dark up to 50ft
Clear resolution 460 TV Lines video display
Powerful Sony CCD color image sensor chip
Easy to install and connects to your existing TV, VCR, DVR Quad Process
Operates in freezing temperatures down to 4°F(-20°C)
Model CUC8752



SPECIFICATION

Pickup device: Sony Color CCD
Number of pixels: NTSC:510(H) X 492(V)
System of signal: NTSC
Horizontal resolution: 480TV Line
Minium illumination: 0.0Lux/F1.2
Lens: 3.6mm
Infrared 24 LEDs 65ft
Backlight compensation: ON/OFF(Optional)
Electronic shutter: 1/50(1/60) ≤1/100,000ses
White balance: AUTO
S/N ratio: >48dB
Gamma correction: >0.45
Operation temperature: -20≤50
Sync.system: Internal
Video output: 1.2Vp-p/75
Power supply: DC12V
Dimensions(mm): 55(D)x75(H)
Weight(g): 320
